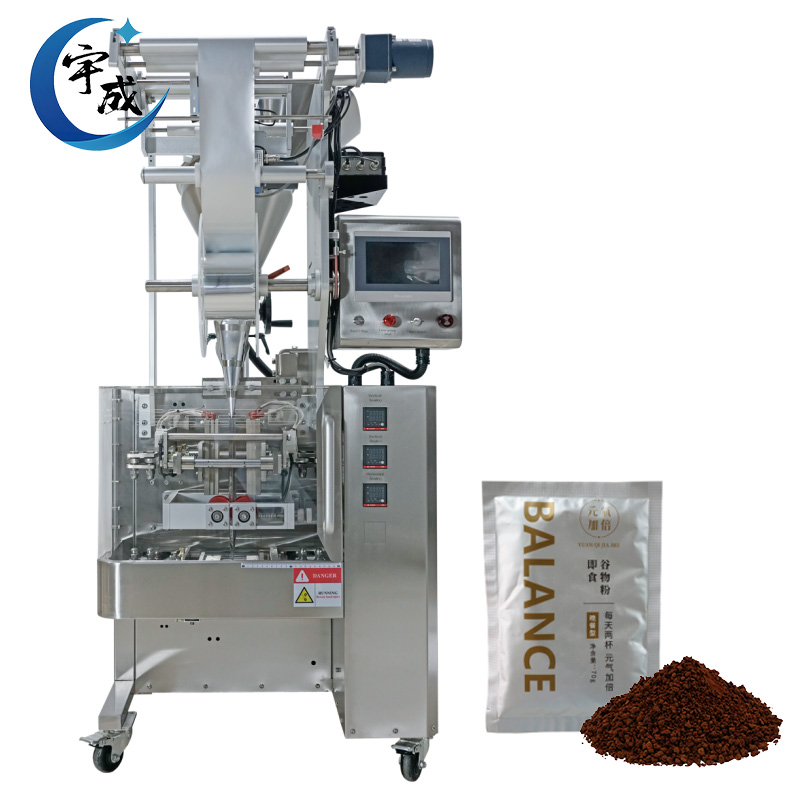

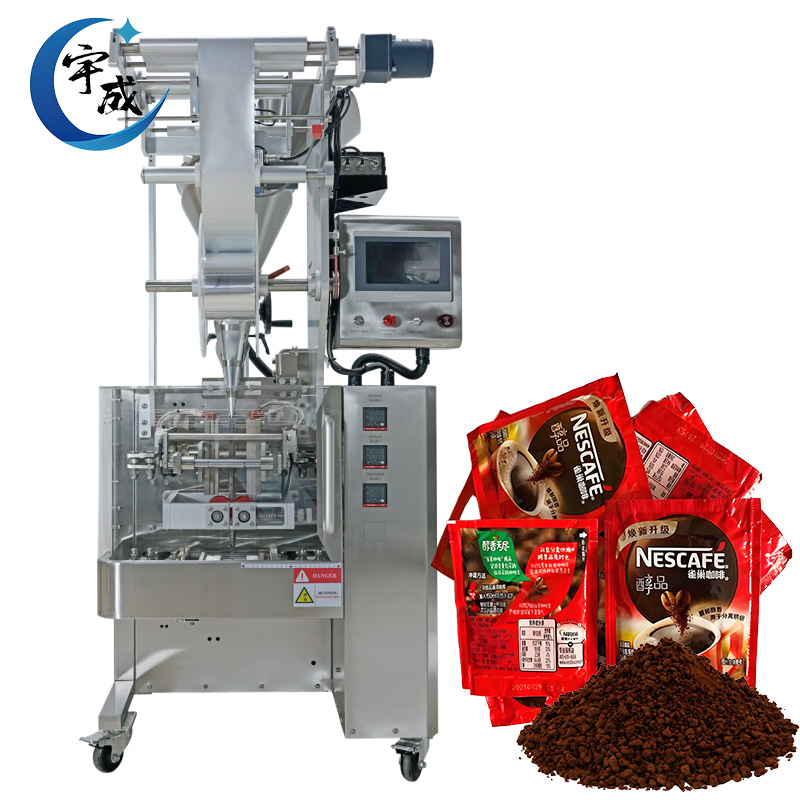

YC-61XCF Four-side sealing coffee powder, curry powder, matcha powder and other powder packaging machines

1、The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.

２、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

3、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

４、Packaging materials：composite film.

 Sealing Type

Three sides Sealing      Four sides Sealing           Back sealing

Technical Parameters

Measuring Scope：1 - 100 g

Bag Size：( L )  :  30 - 170 mm

Bag Size ( W )  :  30 - 130 mm

Packing Speed ：30 - 70 bags/min

Dimension ( L * W * H ) ：759 * 1100 * 1550 mm

Weight：235 kg

Total Power：220V / 50Hz / 2.2kw
