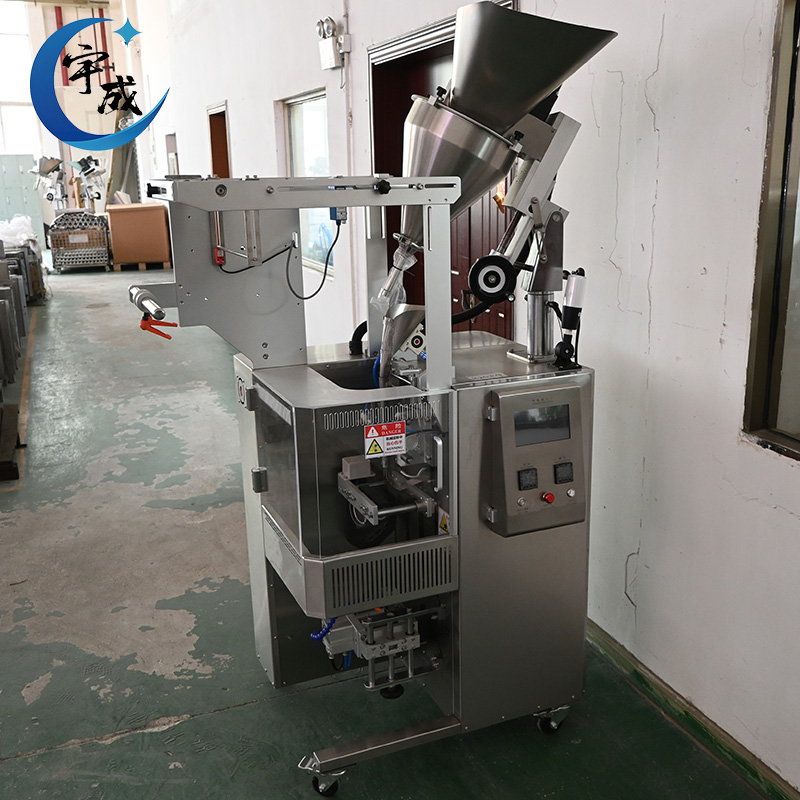

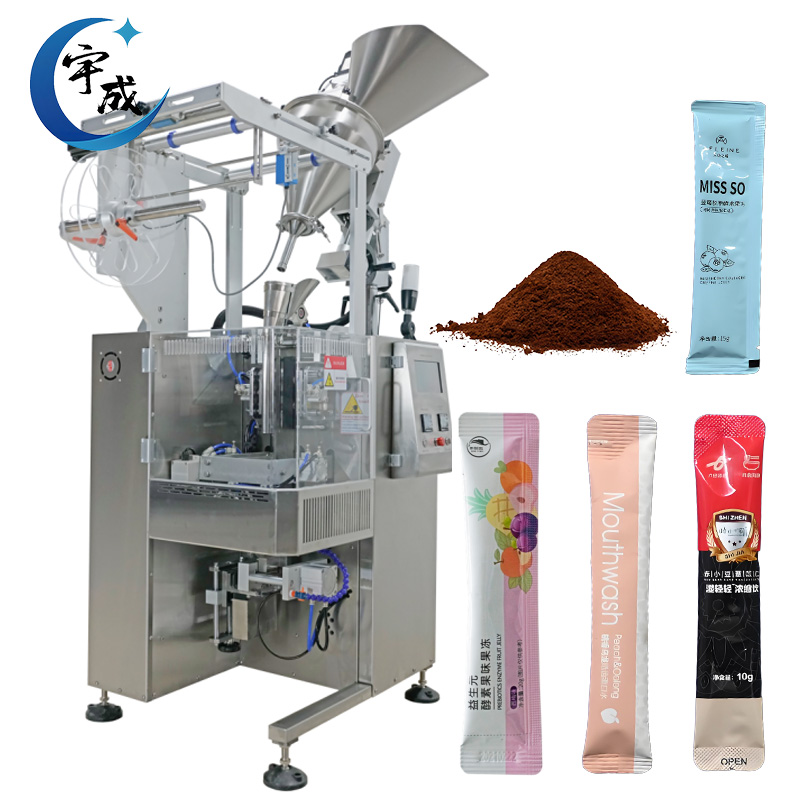

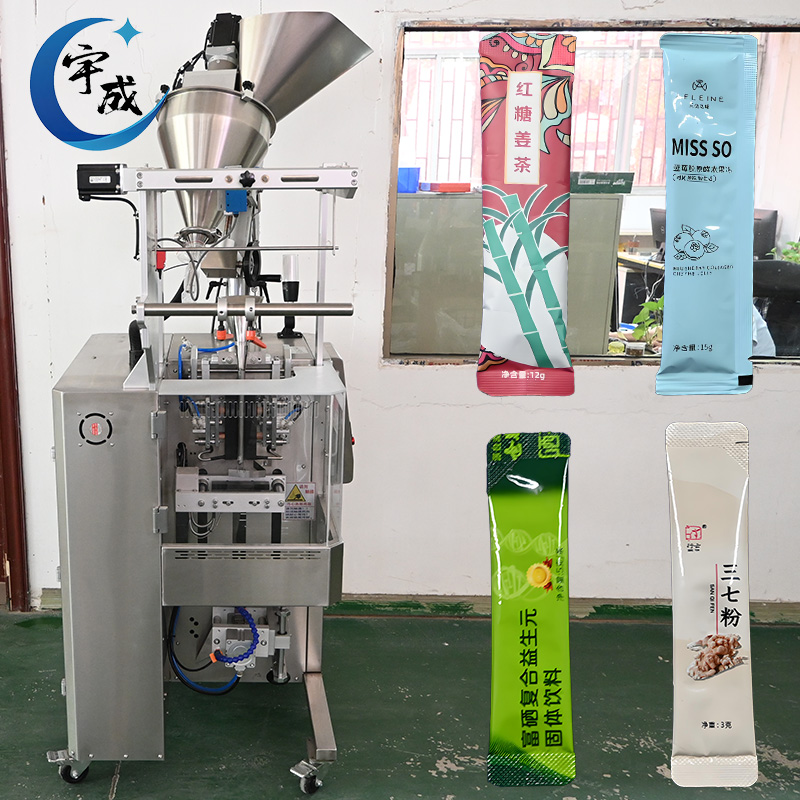

YC-65JLXAF-Y Three-side sealing rounded corner powder packaging machine

Characteristic

１、The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of powder of measurement packing.

２、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

３、The touch screen operation, PLC control, servo motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

４、Packaging materials：composite film.

Sealing Type

Three sides Sealing/ Back sealing/ Four sides Sealing

Technical Parameters

Measuring Scope：1 - 20 g（2.6 - 60 ml）

Packing Speed ：30 - 70 bags/min

Bag Size ( L )  :  30 - 180 mm

Bag Size ( W )  :  20 - 75 mm

Dimension ( L * W * H ) ：780 * 1300* 1790 mm

Weight：245kg

Total Power：220V / 50Hz / 2.4kw
