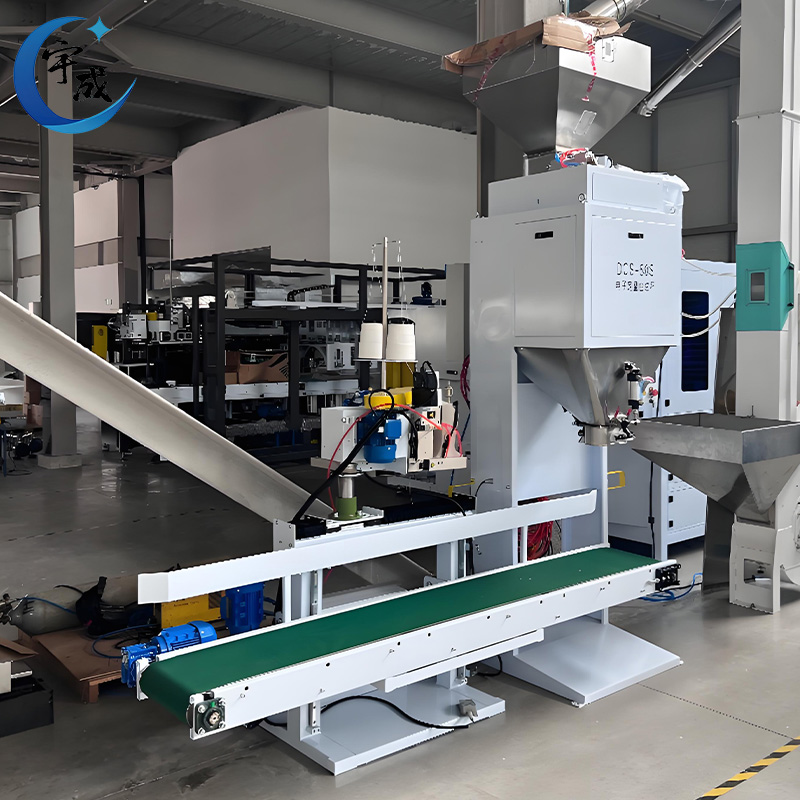

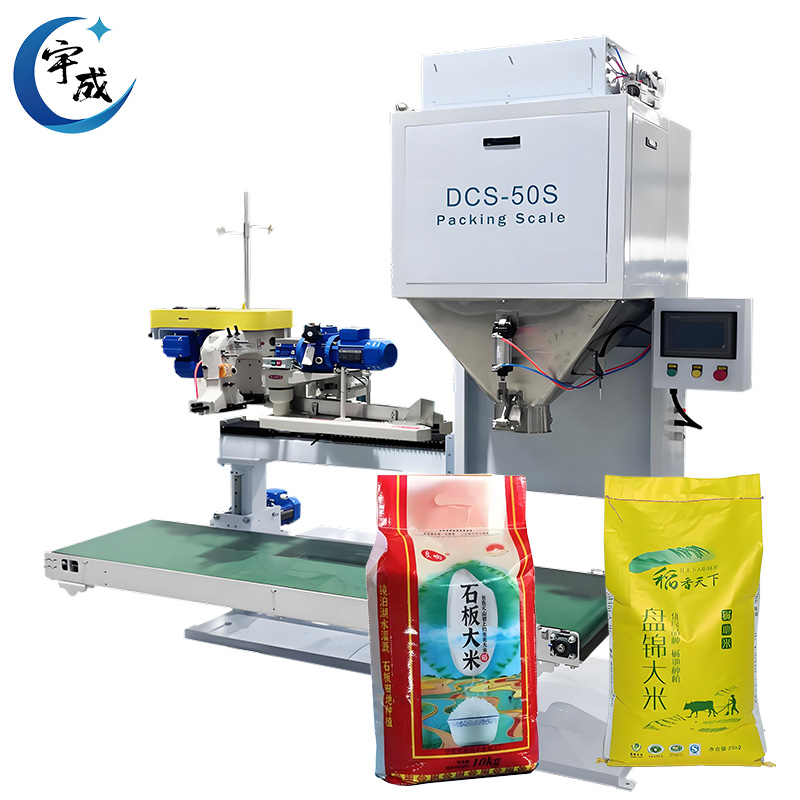

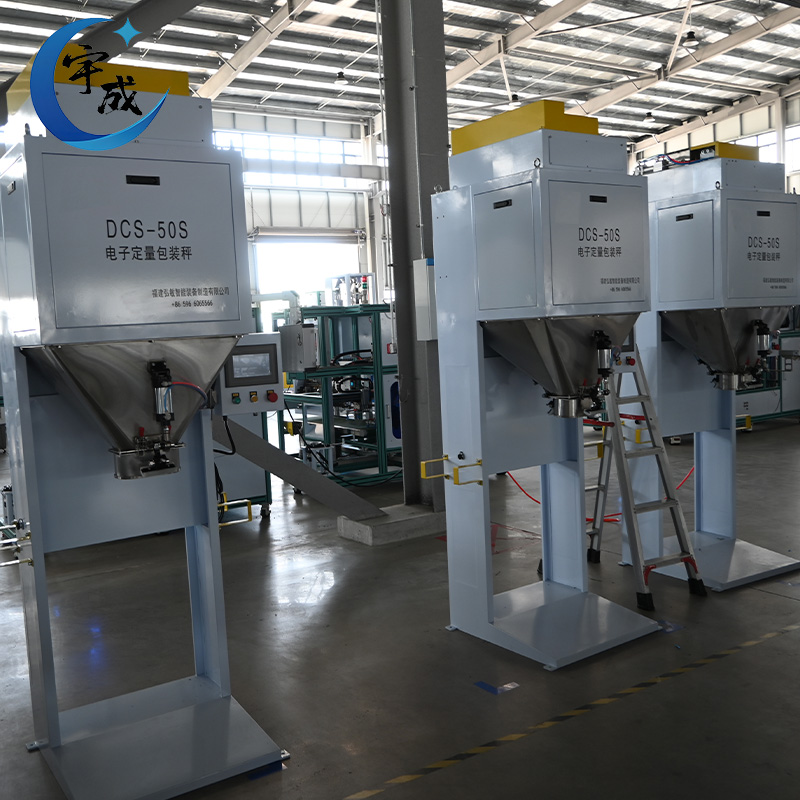

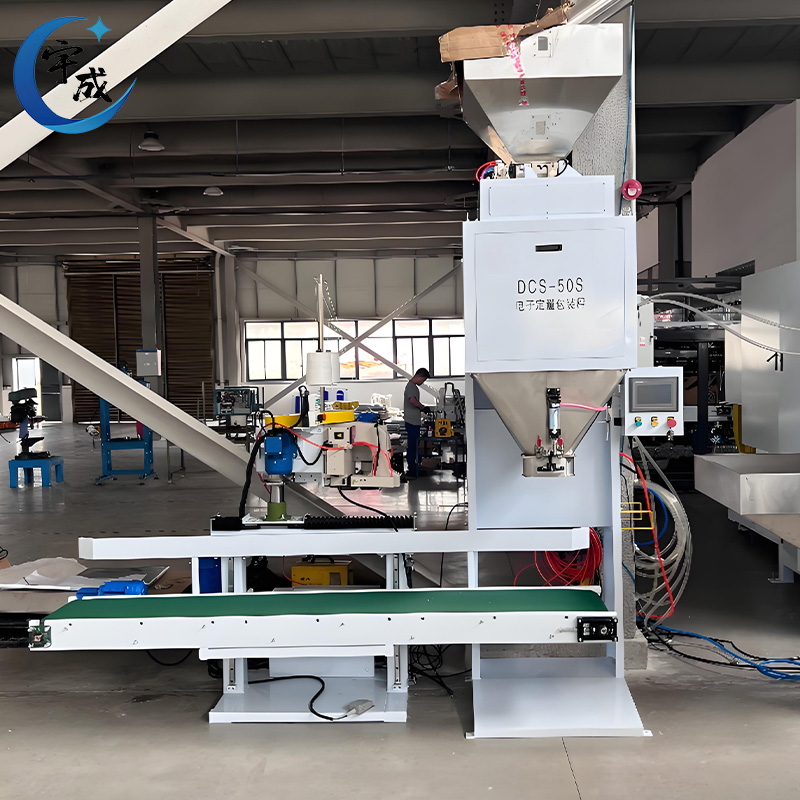

DCS-50S Electronic Quantitative Packaging Scale

1. Electronic quantitative packaging scale is an industrial automated weighing and packaging equipment, mainly used for quantitative packaging of granular or powdered materials in the chemical, fertilizer, grain, feed and other industries. It is suitable for quantitative packaging of granular materials in the fields of grain, rice, nuts, cat litter, pet food, etc.

2. Independent packaging weight input, weighing weight display window, display window uses high-brightness LED display, real-time display of packaging weight, cumulative output, number of packages, high weighing accuracy and fast speed

3. The material does not clump during packaging and does not destroy the material shape; the material is not easy to remain in the packaging machine and is easy to clean

4. The equipment consists of a storage bin, a weighing bucket, a bag clamping mechanism and an electrical control system. It uses dynamic weighing technology and achieves accurate measurement through fast and slow dual-stage feeding.

Name

DCS-50S

Power supply

AC 220V, 0.15Kw

Packing speed

500-1000 bags/hour;

Air consumption

0.4~0.6MPa, 0.6m³/min

Packing range

5-50Kg

Packing accuracy

±0.1

Overall dimensions of the equipment

1030mm*780mm*2480mm
