Vacuum packaging machine

DZX-600 semi-automatic manual bagging double-sided vacuum shaping packaging machine

Manual sitting bagging, high-speed circulation and multi-station, realize automatic weighing, automatic vacuuming, automatic sealing, automatic shaping, and automatic output of finished products. ...
  • DESCRIPTION
  • VIDEO

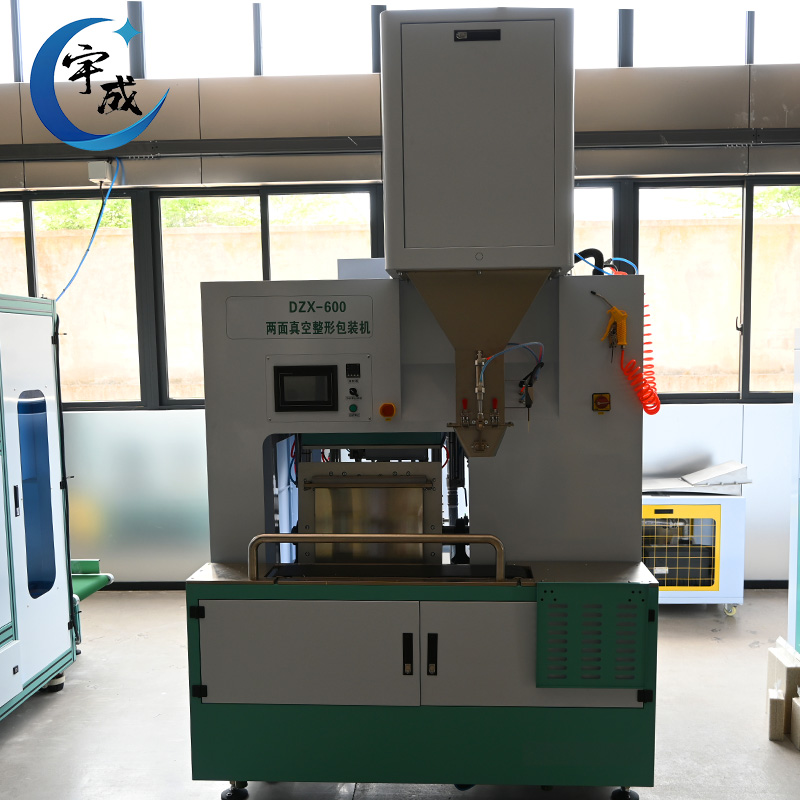

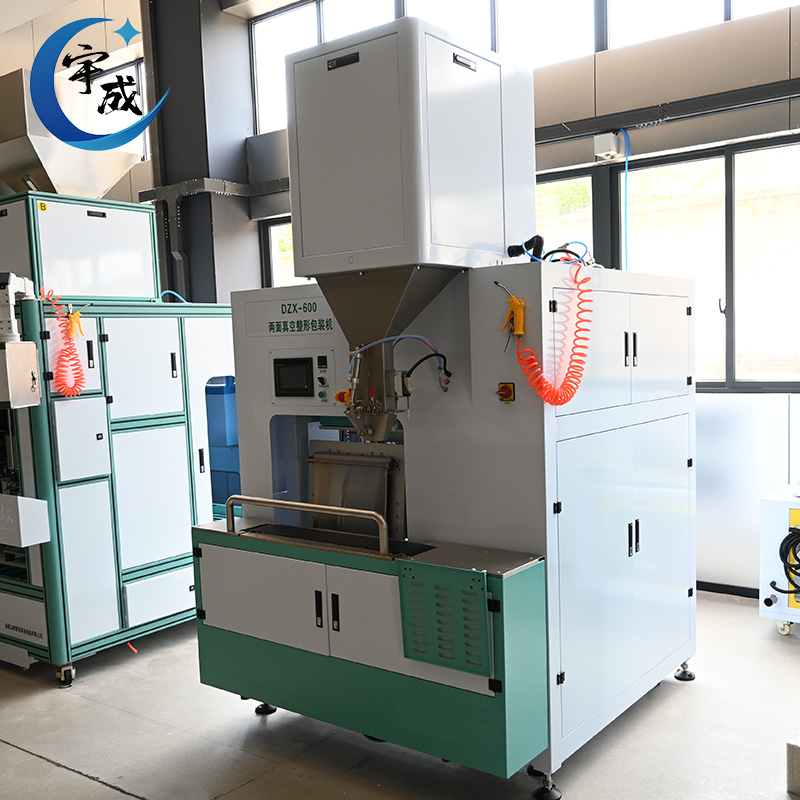

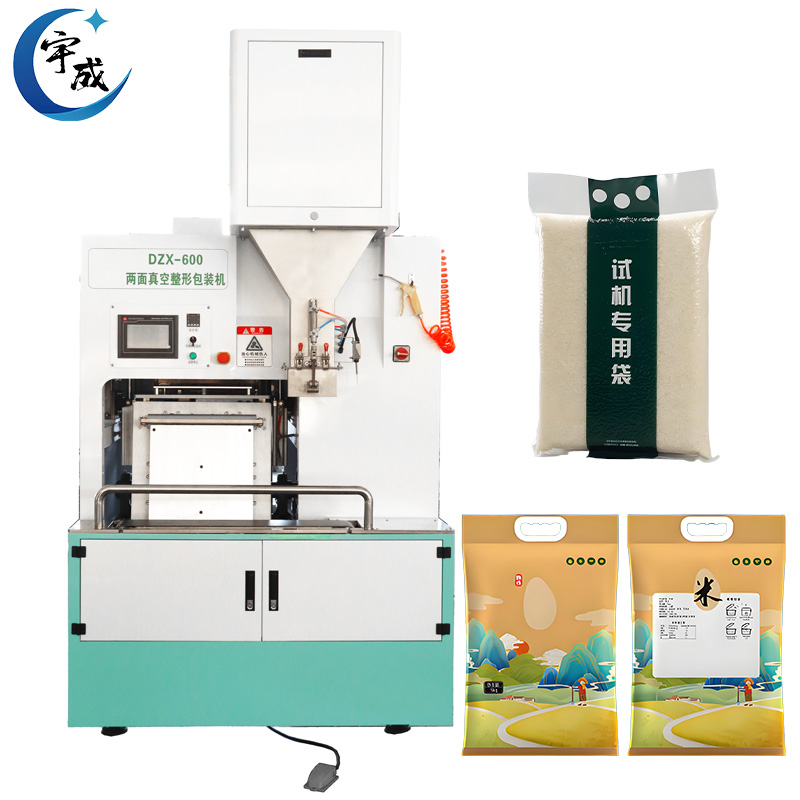

DZX-600 semi-automatic manual bagging double-sided vacuum shaping packaging machine

1. Manual sitting bagging, high-speed circulation and multi-station, realize automatic weighing, automatic vacuuming, automatic sealing, automatic shaping, and automatic output of finished products. The bagging method is simple, the labor intensity is low, and the workers will not get tired after long-term operation, which does not affect the output; the manufacturers in the industry all use double stations, and the workers have to bend down significantly when bagging, which has high labor intensity and is easy to get tired and affects the output.

2. It adopts 10 kg double scale, cyclic metering feeding, and high-precision vibration control multi-stage feeding technology, which has fast weighing speed and high precision; unique patented technology, the metering accuracy is not affected by voltage fluctuations.

3. It adopts large-size touch screen control, and can be built-in with ten specifications for direct call; it is simple and clear to change the packaging specifications.

4. This machine adopts a high-power vacuum pump and is equipped with a gas storage tank, which can effectively increase the vacuuming speed and increase production.

5. It adopts international first-class electrical components, and the performance is more stable and reliable.

6. The electric control reaches IP4 level, the safety of the equipment is more guaranteed, and the weak and strong wires are routed separately without exposure.

7. Extremely simple operation, rich software functions, flexible formula settings, multi-level permission user management mode, one-click switch of different specifications of packaging.

8. Powerful functions, you can choose vacuum packaging or not vacuum only seal, or only weigh and measure.



Name

Technical parameters

Packaging range

0.5-10.0KG (in rice)

Packaging speed

About 500-600 packs per hour (different materials will vary)

Weight error

±2g

Indexing value

1g

power supply

AC380V, three-phase five-wire system, 5.5Kw

Gas consumption

0.6MPa, 0.4m³/min

Measuring method

High-precision electronic quantitative scale

Operating temperature

-10-40, relative humidity: <90%

Size (mm)

1553mm*2465mm*2590.5mm
