Vacuum packaging machine

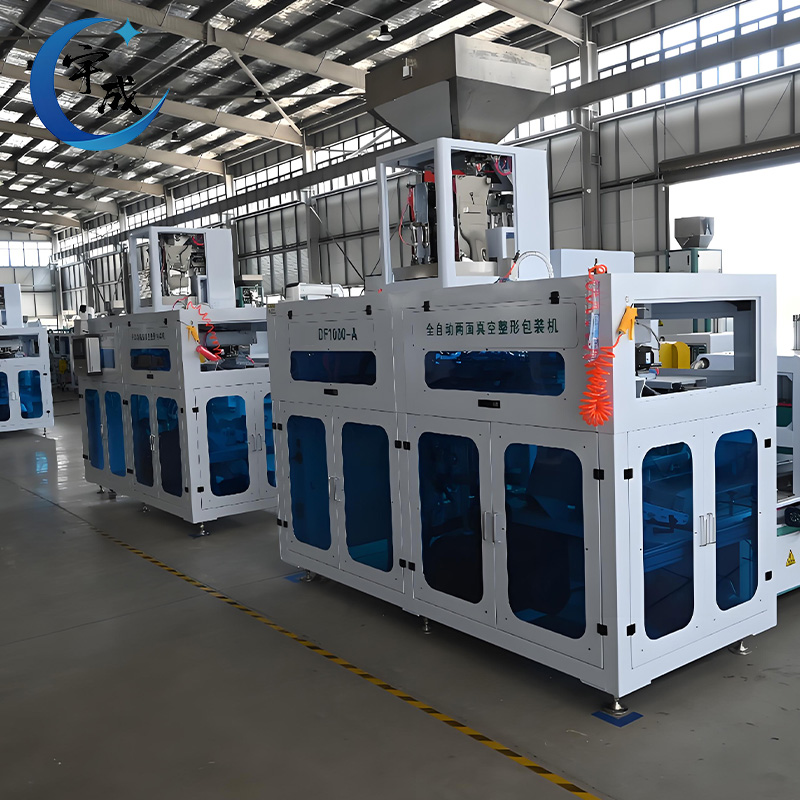

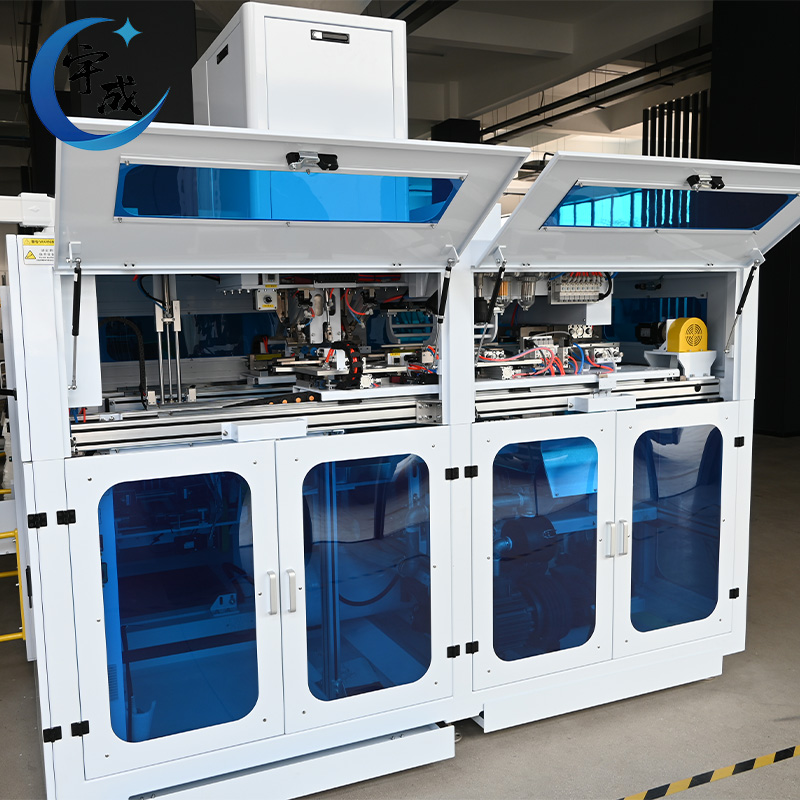

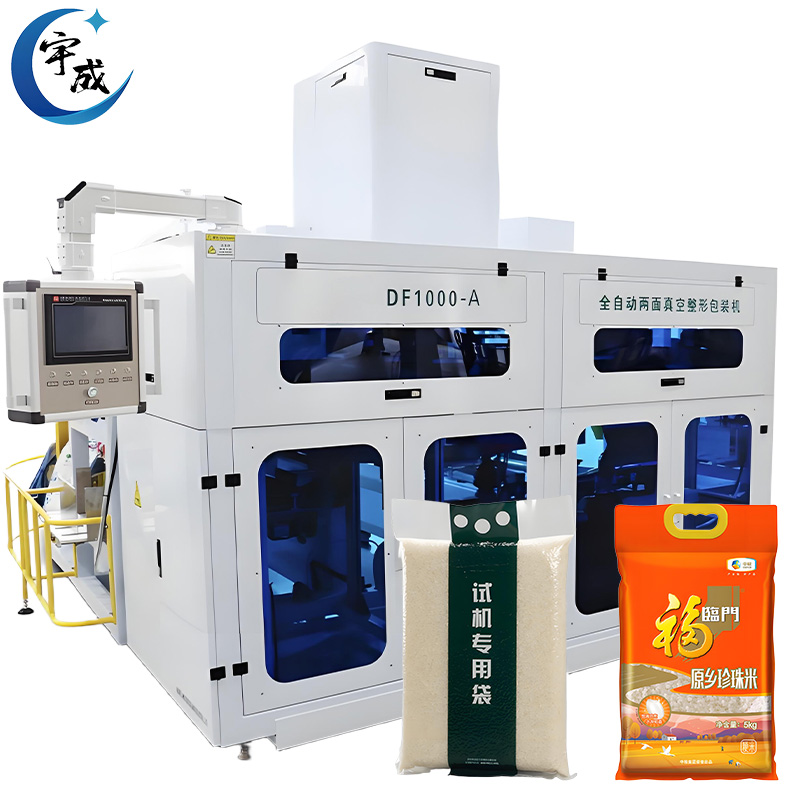

DF1000-A Fully automatic double-sided rice high-efficiency vacuum shaping packaging machine

Large-capacity bag warehouse, which can accommodate more than 600 bags at a time, and has a one-time loading capacity of more than 600 bags, which greatly reduces the frequency of changing bags during operation and improves continuous working capacity and production efficiency....
  • DESCRIPTION
  • VIDEO

DF1000-A Fully automatic double-sided rice high-efficiency vacuum shaping packaging machine

1. Large-capacity bag warehouse, which can accommodate more than 600 bags at a time, and has a one-time loading capacity of more than 600 bags, which greatly reduces the frequency of changing bags during operation and improves continuous working capacity and production efficiency.

2. The equipment is suitable for double-sided lifting ring bags, double-sided non-lifting ring bags, and M-shaped false six-sided lifting ring bags,It adopts one-time sealing and molding, which is suitable for conventional double-sided lifting ring bags, double-sided non-lifting ring bags, and M-shaped false six-sided lifting ring bags on the market.

3. High degree of intelligence, with self-diagnosis alarm prompt function, and automatically remove abnormal bags.

The fully automatic double-sided vacuum shaping packaging machine has the function of automatically removing abnormal bags. It can automatically remove bags for abnormal phenomena such as bag adhesion, bag rupture, bag opening failure, etc.

4. It is more convenient to operate. You can quickly change the production of rice bricks of different specifications by switching the formula. When the fully automatic double-sided vacuum shaping packaging machine changes the production of rice bricks of different specifications, you can choose to switch the corresponding specification formula to achieve production change. (The bag warehouse without lifting loop needs to adjust the bag warehouse width manually)

5. The equipment can have a built-in inkjet printer. The equipment can have a built-in inkjet printer: fiber optic inkjet printer, purple light inkjet printer.

6. To meet more market needs, it can be vacuum packed for freshness preservation, or filled with nitrogen or carbon dioxide for freshness preservation. According to market demand and transportation demand, vacuum mode can be selected for freshness preservation, or it can be switched to nitrogen filling mode.

Name

DF1000 -A fully automatic two-sided vacuum shaping packaging machine

Packing range

2.5kg-10kg two-sided bags, false six-sided bags

Bag size range

Front width 240-380mm, length 390-620mm; (false six-sided) pre-sealed inner width greater than 190mm

Packing speed

About 600-900 bags/hour

Bag storage capacity

(Note: 10kg about 600 bags/hour, 2.5-5kg about 800~850 bags/hour)

Power supply

About 700 bags with handles, about 600 bags without handles

Air consumption

AC380 three-phase five-wire system, 6.5KW

Operating temperature

0.6MPa,1m³/MIN

Dimensions (mm)

0-40, relative humidity: <90%
