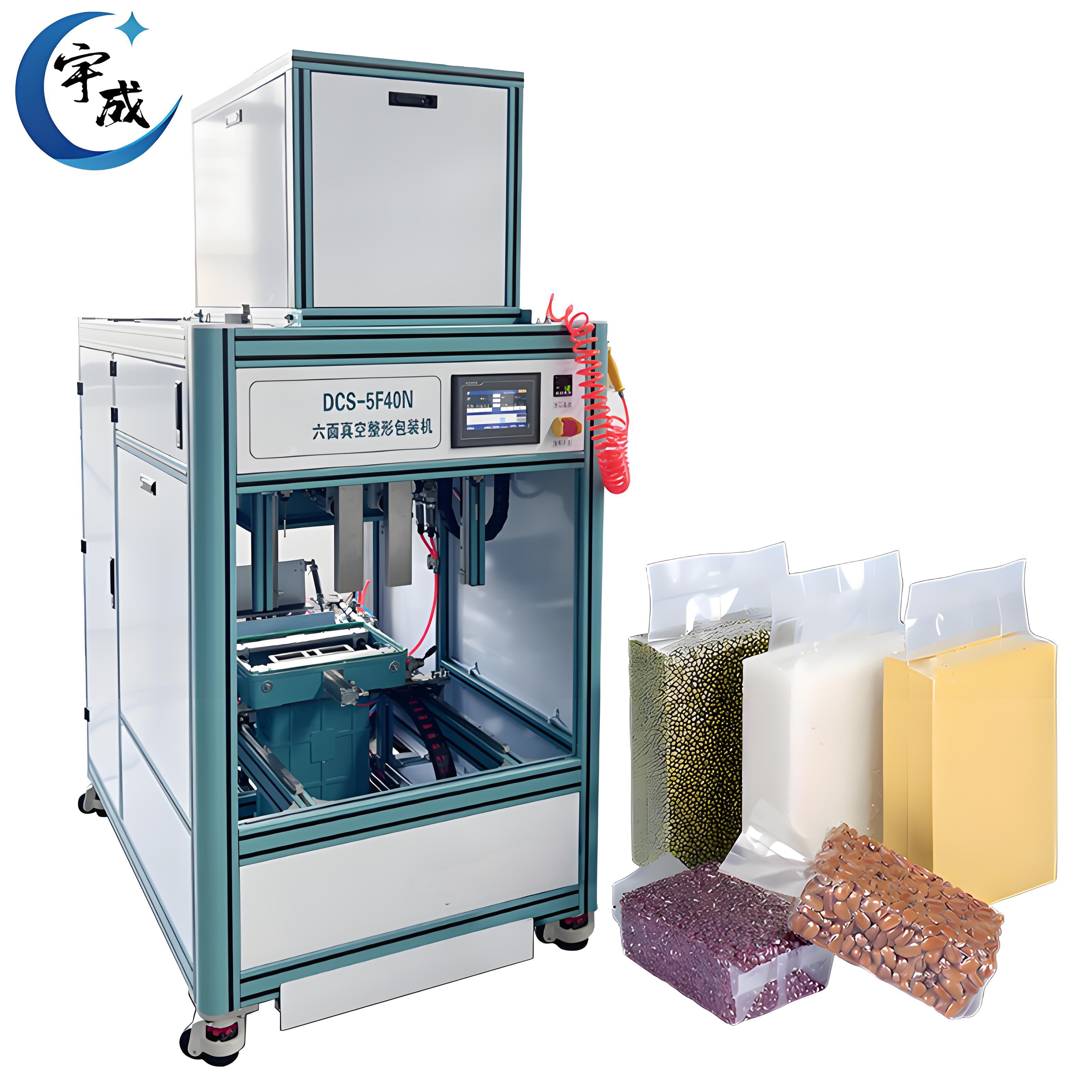

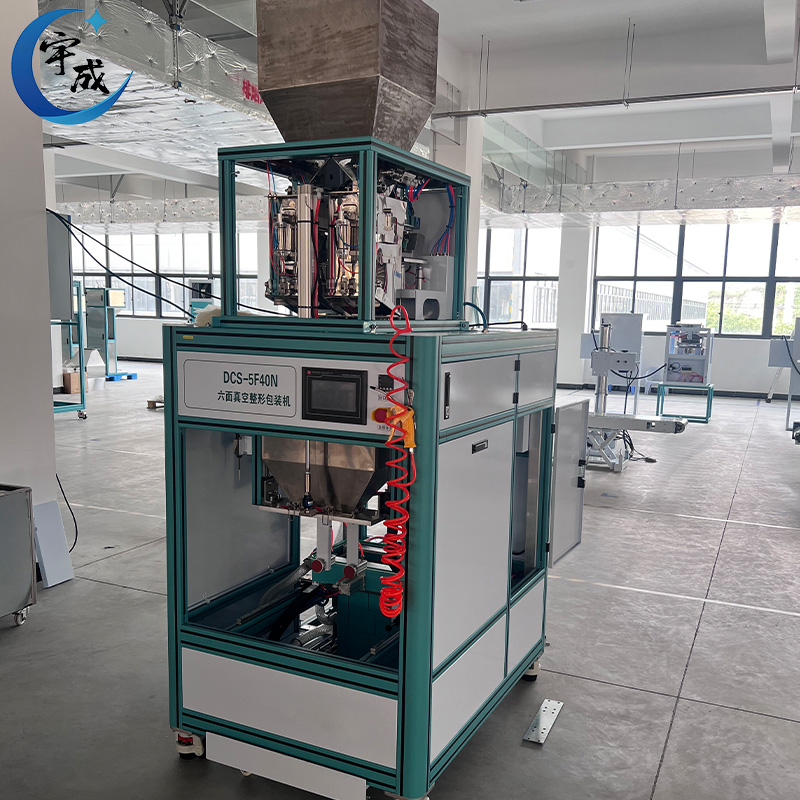

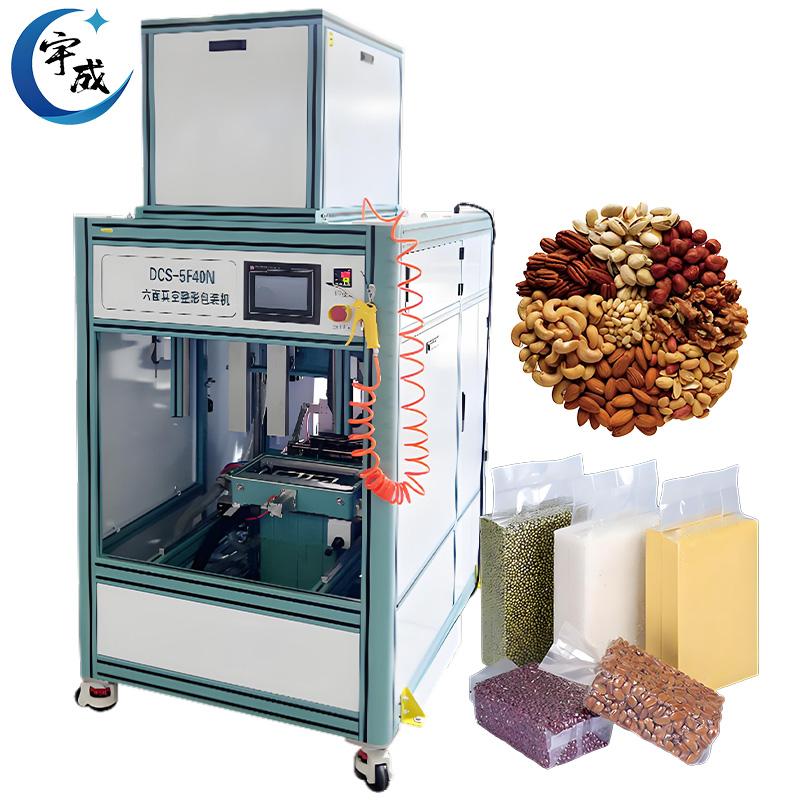

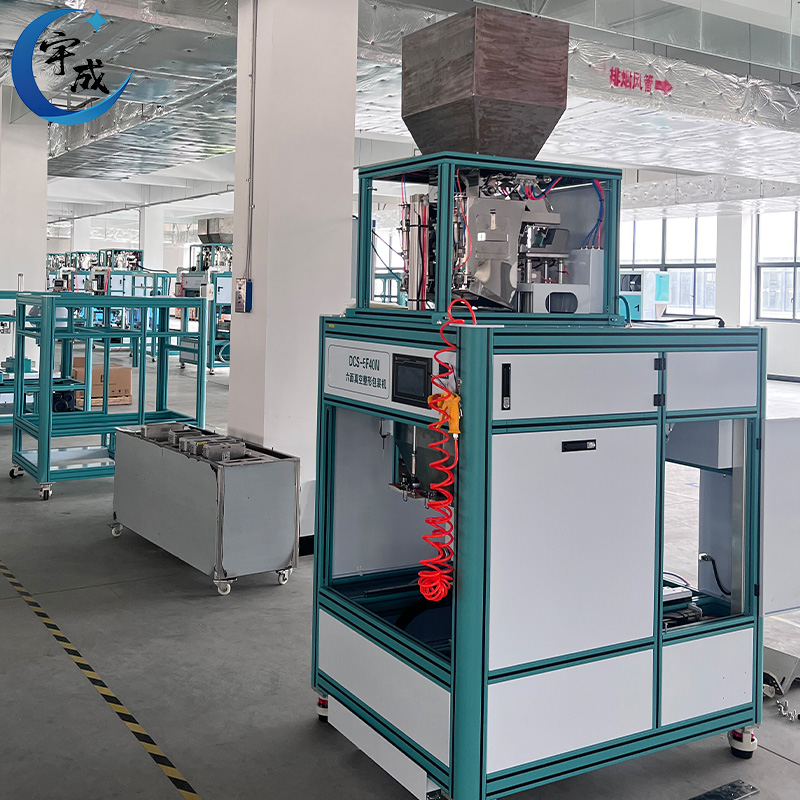

Six-sided vacuum rice, grains, walnut kernel shaping and packaging machine
1. The six-sided vacuum shaping packaging machine is an automated equipment that integrates material filling, vacuuming, shaping, sealing and other functions. It is suitable for vacuum packaging of granular materials in the fields of grain, rice, nuts, cat litter, pet food, etc.
2. Accurate measurement and vacuuming: The intelligent weighing system can set the target weight and remove oxygen from the package through internal vacuum technology to extend the shelf life of the product.

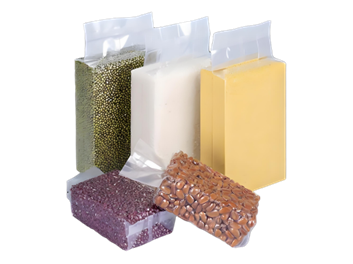

3. Shaping and sealing: Heat sealing technology is used to complete the sealing, and automatic shaping is used to make the package present a hexahedral three-dimensional effect. The packaged product has a beautiful appearance and supports printing of production date, batch number and other information.
4. Material safety: The material contact parts are made of 304 stainless steel, which meets food grade safety standards. It supports touch screen operation interface, real-time monitoring of production status and early warning of faults.
Model specification |
DCS-5F40N |
Packing range (kg) |
Hexahedron: 0.3~5kg |
Applicable materials |
Particles |
Packing speed (bag/h) |
0.3-1.25kg:800~1000 |
Graduation value, accuracy level |
1.25-5kg:400~500 |
Power supply, power consumption |
X(0.5),2g |
Air source, air consumption |
AC220V 50Hz 2KW |
Installation height (mm) |
0.6MPa 0.3m²/min |
